Save 10%

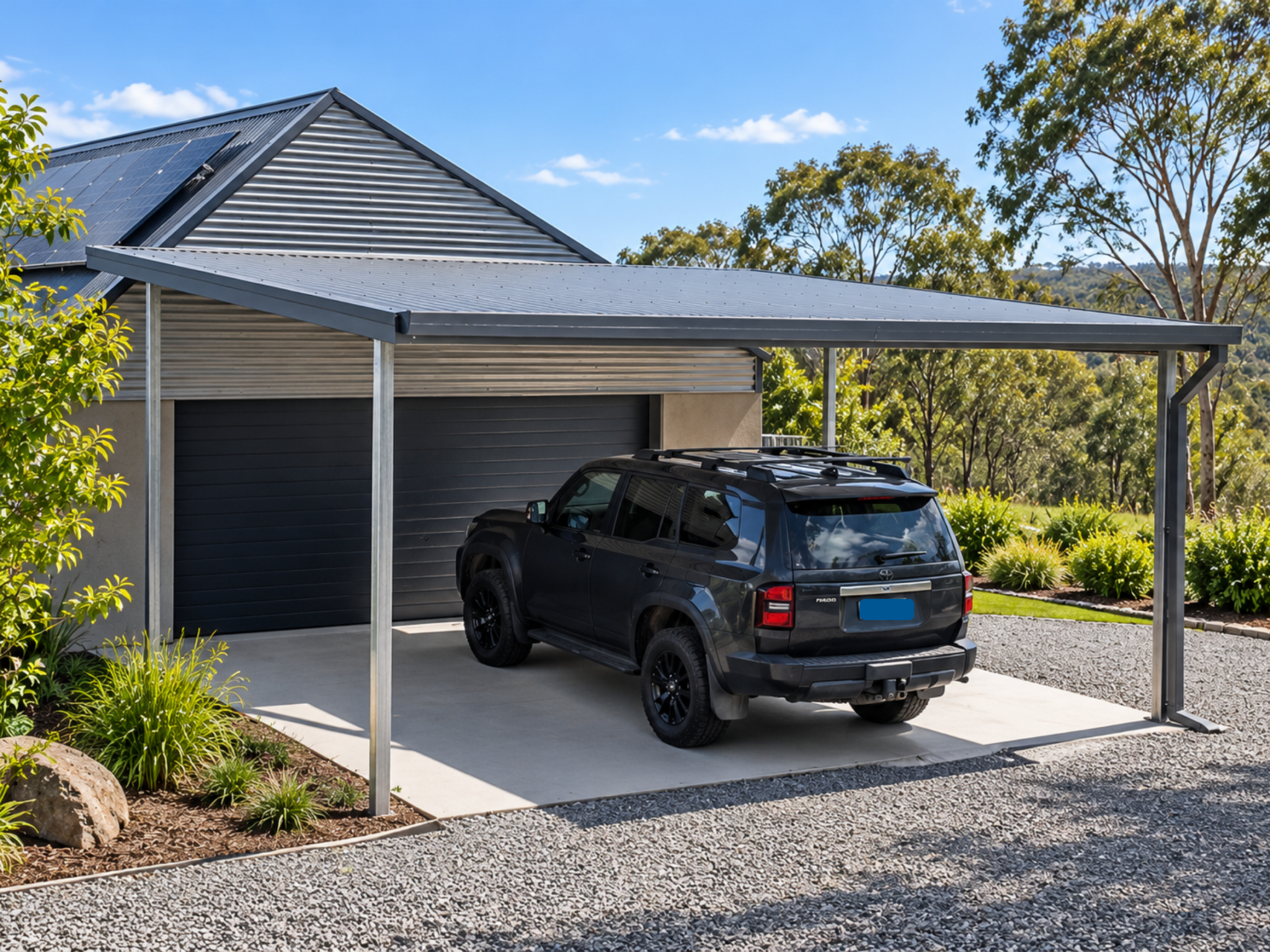

Double Skillion Carport Kit

Original price was: $4,995.00.Current price is: $4,495.00.

Key Features:

Economical & Modern: A cost-effective way to add a sleek, professional carport to your property.
Roof Pitch Options: Available in 2°, 5°, or 10°.
Solar Panel Compatible: Engineering upgrades available for solar installations.
Spacious Design: 36m² footprint – ideal for two vehicles.
Built for Conditions: Standard kit includes 2.4m height, cast-in-ground footings, suited for Wind Region A.
Engineering Plans: Supplied with a 10% deposit – council-ready.
Fast Delivery: Estimated 4-week turnaround from order date.

Perfect for anyone needing a durable, double-size skillion carport with flexible options.

Category: Carports

Width: 6 metres
Depth: 6 metres
- Measured from outside fascia to outside fascia
Height:
- 2.4m (low side) – from ground level to top of fascia
- 2.7m (high side) – from ground level to top of fascia

Columns:
- 75 x 75mm square section (galvanized steel)
Bearers:
- 200mm galvanized steel on all four sides
Fascia Flashing:
- Full-width 200mm with squash fold for a seamless finish
Roofing:
- Monoclad Colorbond® steel roof sheeting
- Available in any standard Colorbond® colour
Guttering:
- 150mm guttering with downpipes and connections
- Available in any Colorbond® colour
Fixings:
- Colour-coded roof screws, deck screws, and pop rivets (Colorbond® matching)

Steel Components:
- Cut-to-size for convenience
- Pre-drilled holes on bearers and rafters
- Columns not drilled, this will need to be done onsite by the builder
Brackets:
- Custom-designed brackets for all connection points
Column Options:
- Extra column length provided for concrete casting
- Optional bolt-down plates available (additional cost)

Plans:
- Detailed architectural drawings
Engineering:
- Certified engineering drawings with Australia-wide compliance
Construction Guide:
- Step-by-step installation manual included

Colour Options	Basalt®, Blue Gum®, Classic Cream®, Cottage Green®, Deep Ocean®, Dover White®, Dune®, Evening Haze®, Gully®, Ironstone®, Jasper®, Manor Red®, Monument®, Night Sky®, Pale Eucalypt®, Paperbark®, Shale Grey®, Southerly®, Surfmist®, Wallaby®, Windspray®, Woodland Grey®, Zincalume®
Footing Options	Bolt to concrete, Cast in ground
Height	2.4m High, 2.7m High, 3.0m High
Wind Region	Wind Region A, Wind Region B, Wind Region C, Wind Region D
